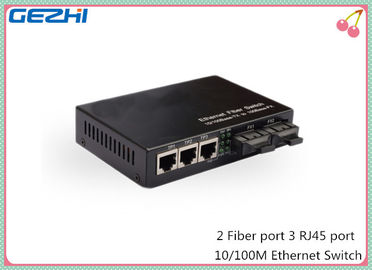

10 / 100Mbps multiport fiber to ethernet switch 2 Fiber ports + 3 RJ45 Ports

Hình ảnh lớn : 10 / 100Mbps multiport fiber to ethernet switch 2 Fiber ports + 3 RJ45 Ports

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	GEZHI or OEM
Chứng nhận:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ- Ethernet Fiber Switch

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	2~7working days
Payment Terms:	T/T, Western Union
Supply Ability:	5000pcs per month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Ethernet Fiber Switch	UTP Rate:	10/100Mbps
UTP Port:	3-port RJ45	Wavelength:	TX1310/RX1550
Optical Interface:	LC/SC	Application:	Ethernet Networking
Điểm nổi bật:	optical fiber components , fiber optic cable components

10 / 100Mbps multiport fiber to ethernet switch 2 Fiber ports + 3 RJ45 Ports

Product Description

The multiport fiber media converter, also named unmanaged fiber switch, it has the similar functions as normal fiber media converter, when you use the converter,all the data from different ports can be shared, realize the data sharing.It is suitable for intelligent community and extend the network transmission from 100m to 120km.

Also it can be realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.Plug and play design makes easy installation, no on-site adjustment, All the light, electricity interfaces are in line with international standards, products applicable to different harsh industrial environment.

The installation and operation procedures of the Fiber Optic Media Converter are simple and straight forward. Operation status can be monitored through a set of Diagnostic LED located in the front panel. Since the data rate is auto-negotiated, no internal adjustments or setting are necessary. Standard shielded RJ-45 connectors are provided.

Application
10 / 100Mbps multiport fiber to ethernet switch 2 Fiber ports + 3 RJ45 Ports 0

Features

_{2×100Base-FX to 3×10/100Base-TX Port}
_{RJ45 support auto MDI/MDI-X function}
_{Auto-negotiation speed, half/full-duplex}
_{Each port has the complete LED Indicator light}
_{Support IEEE802.1d Spanning Tree}
_{Supports high performance QoS function on each port}
_{Flow control fully supported}
_{Support broadcast storm protection}
_{Support custom the wide voltage (4.5V to 20V) input}
_{Support custom the ISOLATE-USER-VLAN}
_{Support max forwarding packet length 2048 bytes option}
_{Requires no configuration and will instantly operate as soon as you power it up}
_{Low power consumption, power is only 2.5W when each port is working}

Specifications

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x Flow control	IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree
Copper Port	Connector:RJ45 Data Rate: 10/100M Distance: 0～100m UTP Type:UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST Data Rate: 155M Optical wavelength:850nm/1310nm/1490nm/1550nm Distance: 0～120km
Performance	Processing Type : Store and Forward MAC Table Size: 2K Buffer Space: 2048 bit Back bandwidth: 1G Maximum Packet Length:2048bytes Time Delay:＜150μs
Power	Input Voltage:AC100V～240V 50/60Hz Connector: DC Socket Working Voltage:5VDC Power Consumption: 1.3W～3W
Environment	Storage Temperature: --40 ˚C ~ +70 ˚C Operating Temperature: -10 ˚C ~ +55 ˚C Relative Humidity: 5-95% ( no condensation)
Physical Characteristics	Dimension: 161×87×26mm Weight:0.30kg Color: Metal,Black

Order Information

GZ-2F3E-S20	2×100Base-FX to 3×10/100Base-TX,SMF,1310nm,SC,20km
GZ-2F3E-A20	2×100Base-FX to 3×10/100Base-TX, Bi-Di TX1310/RX1550nm,SC,20km
GZ-2F3E-B20	2×100Base-FX to 3×10/100Base-TX, Bi-Di TX1550/RX1310nm,SC,20km
GZ-2F3E-AB20	2×100Base-FX to 3×10/100Base-TX, Bi-Di,SC,20km
GZ-2F3E-S40	2×100Base-FX to 3×10/100Base-TX,SMF,1310nm,SC,40km
GZ-2F3E-A40	2×100Base-FX to 3×10/100Base-TX, Bi-Di TX1310/RX1550nm,SC,40km
GZ-2F3E-B40	2×100Base-FX to 3×10/100Base-TX, Bi-Di TX1550/RX1310nm,SC,40km
Note: 1.Power supply provided by user or order additionally. 2.SC connector as default, FC/ST as request.

10 / 100Mbps multiport fiber to ethernet switch 2 Fiber ports + 3 RJ45 Ports 1
